Silverlight Tile Map using WriteableBitmap

by Cameron Albert 23. November 2009 12:52

Bill Reiss posted an interesting article and code the other day concerning the WriteableBitmap class and some extension methods. I downloaded the code and wrote a tiling map control using the WriteableBitmap class for my multi-player role playing game. Here is a snippet of the important piece of code that does the rendering:

   1:  private void RenderMap()
   2:  {
   3:      var xPos = _center.X - _halfX;
   4:      var yPos = _center.Y - _halfY;
   5:
   6:      for (int y = 0; y < _numTilesY; y++)
   7:      {
   8:          for (int x = 0; x < _numTilesX; x++)
   9:          {
  10:              var tile = _tiles[new Point3(xPos, yPos, _zIndex)];
  11:              var terrain = Game.Terrain.Where(t => t.ID == tile.Terrain).FirstOrDefault();
  12:              if (terrain == null)
  13:                  terrain = Game.GetDefaultTerrain();
  14:
  15:              _surface.Blit(new Point(x * TileWidth, y * TileHeight),
  16:                  _tileImage,
  17:                  _tileRect,
  18:                  terrain.GetColor(),
  19:                  BlendMode.AlphaBlend);
  20:              xPos++;
  21:          }
  22:          xPos = _center.X - _halfX;
  23:          yPos++;
  24:      }
  25:
  26:      _surface.Invalidate();
  27:  }

The _surface variable is just a WriteableBitmap instance initialized to the width and height of the map control. The _tiles variable holds a list of the map tiles in range of the _center position. The xPos and yPos are the world coordinates and the terrain instance just holds the color to paint the tile.

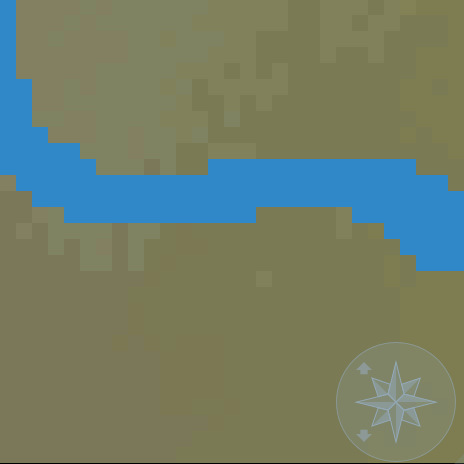

The end result looks something like this:

perenthia tile map
